Forward Extrusion Rig

Extrudability is the work required to push or force out (or expel) a product. For products in tubes, such as syrups and icings, removal of the contents relies upon the consumer squeezing the packaging to extrude the product. The ability to squeeze the product out effectively is essential and the consistency of the contents of a tube or sachet is therefore fundamental to its ease of removal from the packaging when required. If the substance is too dense, consumers will experience difficulty extracting it; if it is too fluid, the product could leak. Assuming the orifice size remains constant, the force to squeeze the packaging depends largely on the consistency of the e.g. paste/cream

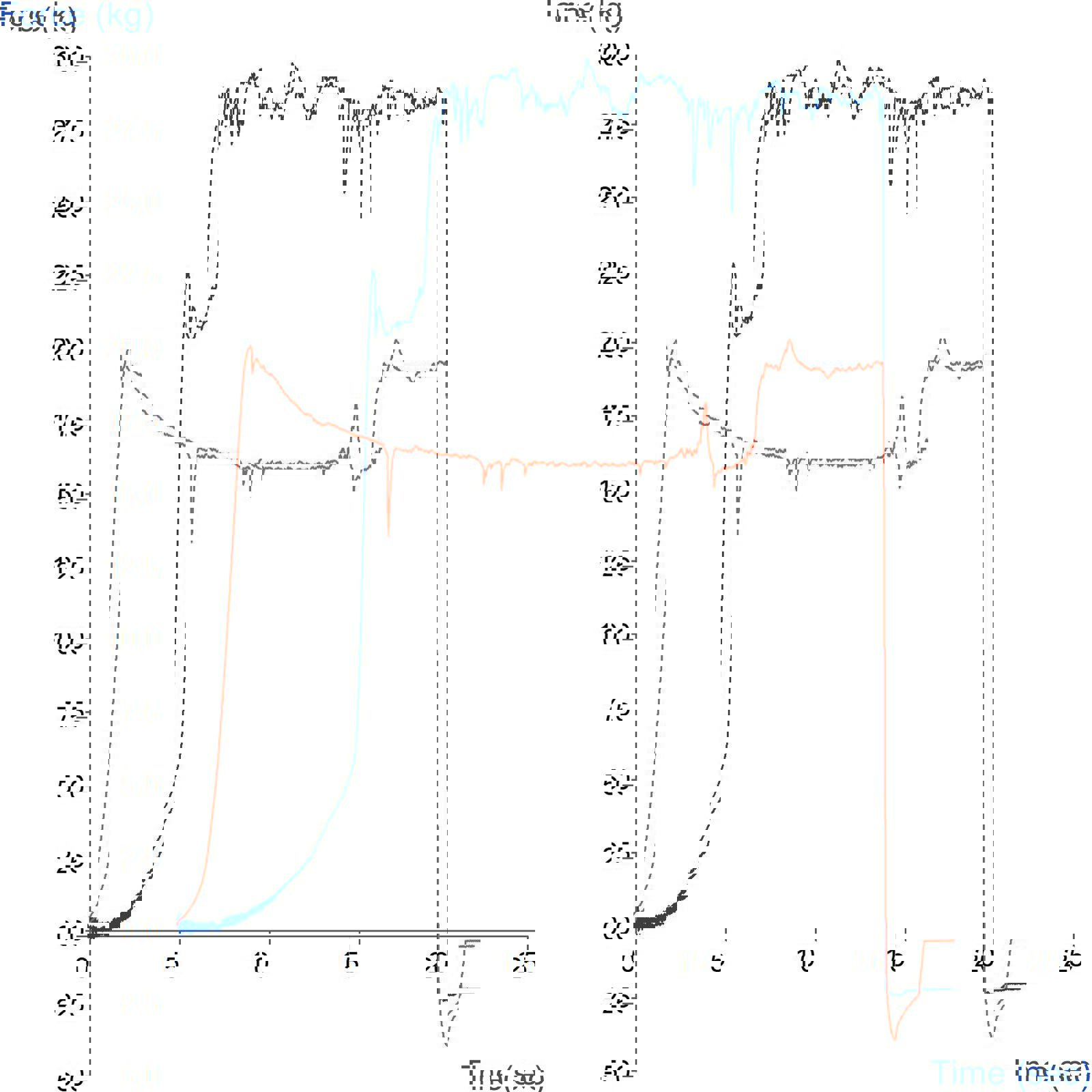

To attempt to mimic this situation a forward extrusion test can be employed. A Forward Extrusion Rig measures the compression force required for a piston disc to extrude a product through a standard size outlet in the base of the sample container. The base of the container accommodates a disc containing a central hole (termed the annulus) of varying diameter (3, 5, 7 or 10mm), depending upon the consistency of the sample. The complete sample container is located into a centralising insert fitted into the Heavy Duty Platform and a piston disc is attached to the load cell using a probe adapter which acts almost like a piston to compress the sample and causes forward flow through the annulus of the disc.

Products suitable for this type of test include pastes and viscous liquids without the presence of particulates.

Homogeneous viscous liquid and semi-solid materials which need to be contained in order to measure their extrusion properties by pushing through an orifice.

• Provides an imitative test of real-life consumer situations
• Samples should not contain large air bubbles or particulates

Forward extrusion piston disc – HDP/FE-D

Insert with 3mm Ø outlet (pack of 3) – HDP/FE-BI3

Insert with 5mm Ø outlet (pack of 3) – HDP/FE-BI5

Insert with 7mm Ø outlet (pack of 3) – HDP/FE-BI7

Insert with 10mm Ø outlet (pack of 3) – HDP/FE-BI10

A Product Catchment Drawer (HDP/CAT) is recommended for collection of extruded sample under the Heavy Duty Platform during a test.

Tape should be placed on the extrusion disk hole if a low viscosity sample is contained.

Friction between the extrusion disk and cell wall should be almost negligible. A ‘blank’ test should be performed to check this.
